Complies with ASME B30.26

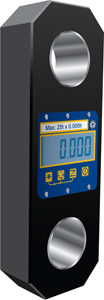

Digital Dynamometer tension load cell known worldwide as the original electronic force measurement device to feature an integral display, the Loadlink plus has been in production since 1979. Over the years the line has been expanded and the Loadlink plus is now used on a daily basis for load monitoring and heavy lifts ranging in capacity from 1t to 300t, by a variety of industrial and commercial industries including manufacturing, transportation, agriculture, oil and gas, utilities, aerospace and clean energy.
Decades of development into this product include many stand out features such as our unique strain gauging method that helps compensate for wire rope torque when the Loadlink is loaded.
This latest version of the digital dynamometer has advanced features and benefits providing solutions for today’s complicated load test and force monitoring needs. The Loadlink plus features full function push button controls for tare, choice of units (lbs, kg, kN, and tonnes), peak hold, preset tare, audible set-point alarm and an overload counter.
The advanced microprocessor based electronics provide the Loadlink plus with high speed read rates, extreme resistance to industrial level noise and unprecedented stability. This high stability gives the Loadlink plus over 5,000 divisions and the highest standard resolution of any digital dynamometer on the market today. Constructed of high-grade aircraft quality aluminium, Straightpoint’s advanced internal design structure allows the product to once again top the charts with an unmatched weight to strength ratio.
Straightpoint’s link style dynamometers are on average 30% lighter than our closest competitor with the same safety rating.
FEATURES AND BENEFITS
Large 25mm/1” LCD display
High Accuracy of +/-0.3% of applied load
Selectable Units - t, lbs, kg or kN
High Resolution, 5000 divisions as standard
Peak Hold – 100Hz peak force analysis
Push button tare
Preset tare
Compact Size
Lightweight
90db Audible set point alarm
Design validated by F.E.A.
APPLICATIONS
Testing
Overhead Weighing
Loadcell Rental
Bollard Pulling
Tug Testing
Cable Tensioning
Heavy Lift
SUPPLIED WITH THE FOLLOWING AS STANDARDProof test certificate
Operator Manual
Carry/Storage Case
RFID Tagged
Loadlink plus specifications
Loadlink plus additional technical data
Material of construction: Aluminium 2014-T6, load bearing bushes EN24T
Finish: Black anodized to BS EN 12373-1:2001 Class 10. Bushes clear passivated.
MTBF to WLL: Typically 50 million cycles
Elongation: Typically <0.4mm / at WLL
這款設備是我們早在1979年便開始制造供應的一款最初類型的負載監控設備，其突出特點是帶有一塊集成控制顯示屏幕。經過多年來的產品應用拓展，此設備受到世界各地用戶的歡迎，廣泛用于各類行業和領域，如產品制造、運輸、農業、油氣能源、公共基礎設施、航空和清潔能源。
現在，我們推出了此設備的最新款式，為滿足用戶在更為復雜的環境條件下進行負荷測試或負載動態監控的需求而提供了更為先進和實用的完整技術解決方案。通過屏幕上的觸壓按鍵，用戶可以輕松掌控各種設備功能設置，包括毛凈重切換、計載單位切換、峰值延時顯示、安全載荷警報提示和過載計數等。
此設備內置有以先進微處理器為核心的高防護等級的電子元件結構，數據讀取精確度和準確度很高，工作性能穩定，對各種工業環境中的噪音影響耐受力極強。其主體結構采用高級別的航空鋁材料制造而成，結合目前最為先進的內部構造設計，使設備的自重強度比達到最高水平（同等負載能力水平下自重比同類競爭產品平均輕30%）。
產品特點
l 大的LCD屏幕。
l 數據精確度高。
l 數據準確度高。
l 計載單位有多種選擇。
l 峰值延時顯示功能。
l 毛凈重模式切換功能。
l 自重小。
l 皮重預設功能。
l 過載次數記錄功能。
l 安全載荷報警提示功能。
l RS-485序列輸出。
l 產品設計經過有限元分析驗證。
